- Additional Product Details
Single Mini Magnet 12Vdc/24Vdc. Suits reveal >44mm.
Dimensions - 250mm L x 42mm H x 25mm D
- Aluminium housing
- 12/24 VDC @480/240mA
- 280kgs (600lb) holding force
- Built-in surge protection
- Non-monitored
- Fire Tested (30 & 60 minute timber door sets)
- Clean and compact design in aluminium
- Single LED indication on 272
- No residual magnetism

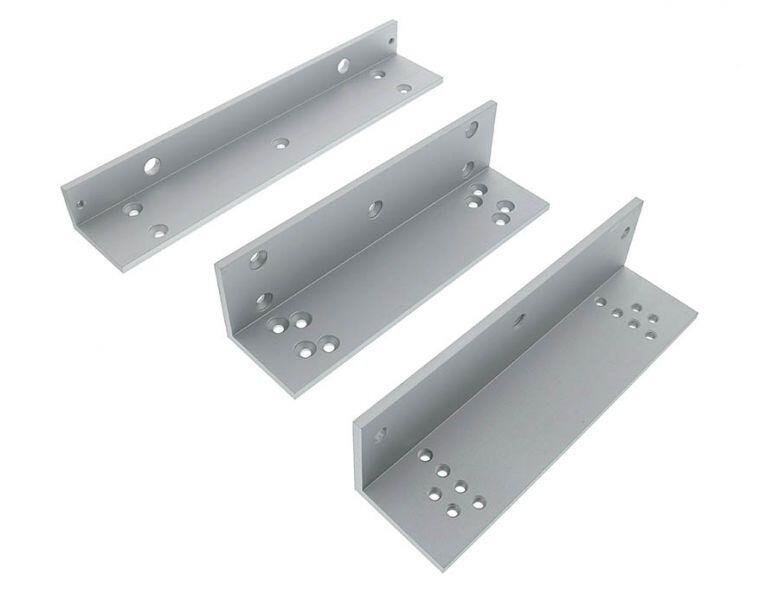

Suitable brackets:- 272ZL (ZL Bracket)
- 272L(LBracket)
- 272AH (Armature Housing)*
*Specify the 272AH when using the 272 series direct hold magnets on fire-rated timber doors opening away from the secure side.The 272 high-quality direct-hold electromagnetic locks can be used with all access control systems.
