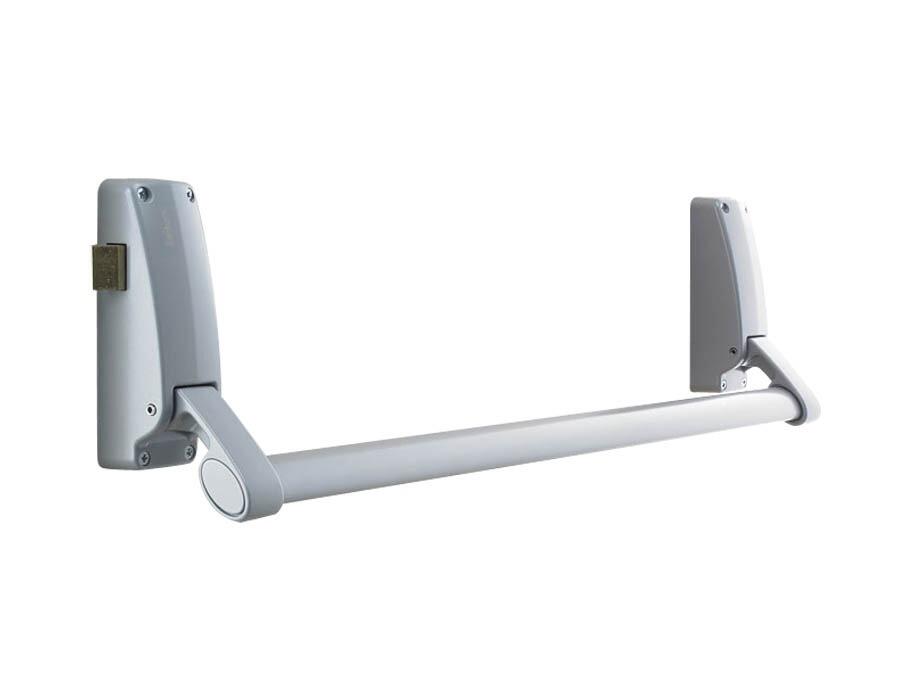

Briton 378M.D.SE | Push Bar - Rim Latch w. Dogging (Hold Back) (378)

Single point locking rim latch w. metal door/frame strike, fixings & dogging (hold back)

• For single doors and the first opening leaf of double doors w. rebated meeting stiles
• Designed to satisfy panic exit applications or emergency exit applications
• Suitable for use on fire & smoke doors 665mm to 1300mm wide
• Site reversible - easy to hand on site
• Rim panic latch with single-point latching
• Tubular steel crossbar can be cut on-site to suit door width
• Tested over 200,000 cycles
• All versions supplied with fixings and self-adhesive 'Push Bar to Open' signage
• 5-year guarantee

For key-controlled external access, use the Briton 1413/LE.SE Outside Access Device (compatible with all Briton Exit Devices)

The Briton 370 Series of escape hardware consists of a vertical bolt, rim latch, and mortice night latch operator. Each product is operated by a push pad (EN179) or horizontal bar (EN1125), which, when pushed in a downward arc, withdraws the locking element, releasing the door for immediate egress.
