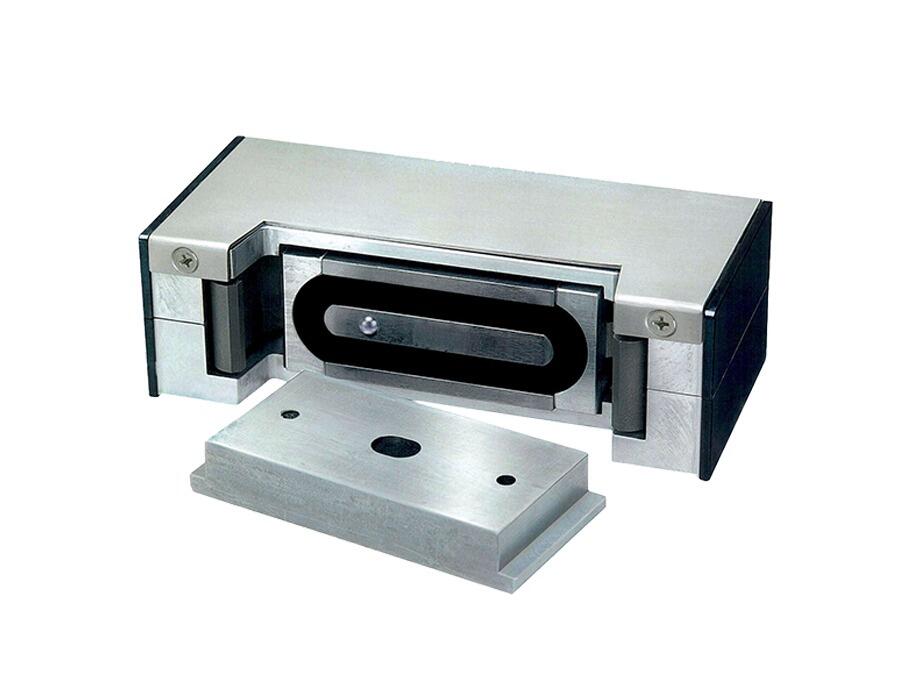

The hybrid design of this magnetic electromechanical lock includes two spring-loaded, hardened steel jaws that deliver up to 1814 kilos of ultimate holding power. In a forced-entry assault, the jaws of the MM15 MEMLOCK clamp down on the armature plate and hold firm for an unmatched level of access control.

Efficient, low power usage
Ideal for mental healthcare and auxiliary detention facilities and other high-risk locations
Automatic dual-voltage — no field adjustment required
Mounting plate for easy, accurate installation
Size optimised for use with door closers
Accepts AC or DC current
Ultra-secure collapsing blind nuts mount to the door frame for strength and reliability
Fail Safe, but can be installed with a battery backup power supply
MagnaCare® lifetime replacement, no-fault, no questions asked warranty
Includes D Integrated Door Position Switch
Includes T Anti-tamper Switch

Options

G Gate Conduit
TS Tamper Shield

Specifications

Electrical - DC: 100 mA at 12Vdc & 200 mA at 24Vdc | AC:130 mA at 12Vac & 250 mA at 24Mac
Holding Force - 1814 kilos
Operating Temperature - minus 40°C to plus 60°C
Indoor use only

Best suited to heavy-duty situations on perimeter doors where secure access control is essential.

The MM15 electromagnetic lock is a strong, easy-to-maintain solution for interior and perimeter access control. With unsurpassed durability, the MM15 will last long after most buildings wear out. Flexible mounting options support applications for hollow metal, concrete-filled metal, wood, or glass with aluminium frames.
