- Additional Product Details

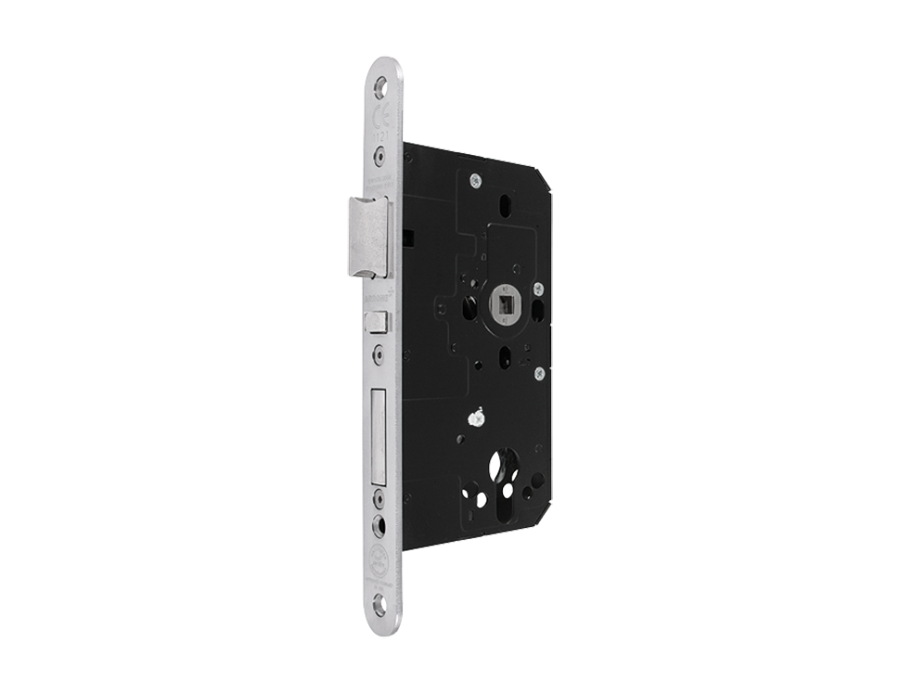

Apartment Lock 60mm Backset - Radius Forend.
- Single action escape function from inside - internal doors
- 72mm centres, case pierced to accept bolt-through furniture & escutcheons at horizontal 38mm centres
- Follower: 8mm split follower with a self-locating plate to allow easy reversibility of the escape function
- Single throw 20mm projection deadbolt
- Supplied with AR228A (100mm) & AR228B (120mm) spindles for split follower locks
- CE Marked: Certificate: 1121-CPR-AG0165 (BS EN12209), 1121-CPR-ABB010 (BS EN179)
- CPR Declaration of Performance: HUK0012 & HUK0035
- Certifire approved: Certificate CF530
- To comply with BS EN179 certification, only lever handles and associated fixings included in the test evidence may be used
- Meets dimensional recommendations of BS8300 and Approved Document M for locks
- Fixings: Timber door screw; Pozi; A1 material; colour matched
- Case size: Depth: 88 mm length: 165 mm width: 16 mm, modular
IMPORTANT - For use on fire and smoke compartment doors when installed per the manufacturer's fitting instructions.The AR900 series lock case has been fire-tested successfully with the inclusion of an intumescent kit. Accordingly, the intumescent kit is an essential component relating to the product's compliance with fire test evidence and CE/UKCA marking certification. Relcross Ltd takes no responsibility for any locks installed without the correct intumescent protection. Please call the sales office for further advice.
Briton Fire Door Closers | Briton Exit Devices | Briton Locks | Hoppe Locks
Relcross Limited (trading as) Door Hardware Online | Hambleton Avenue | DEVIZES | Wiltshire | SN10 2RT | United Kingdom | T: ++ 44 (0) 1380 720 062 | F: ++ 44 (0) 1380 729 888 | E: britonsales@doorhardware-online.co.uk
- Certification
EN 12209: 2003/AC:2005 & EN 179: 2008
UKCA | CE | Certifire | 30, 60, 90 & 120 Mins Timber | 240 Mins Steel | Warranty: 10 Years (Mechanical)
Certificates, including DoPs downloadable here
- Resources | Downloads
