Finishes: Silver

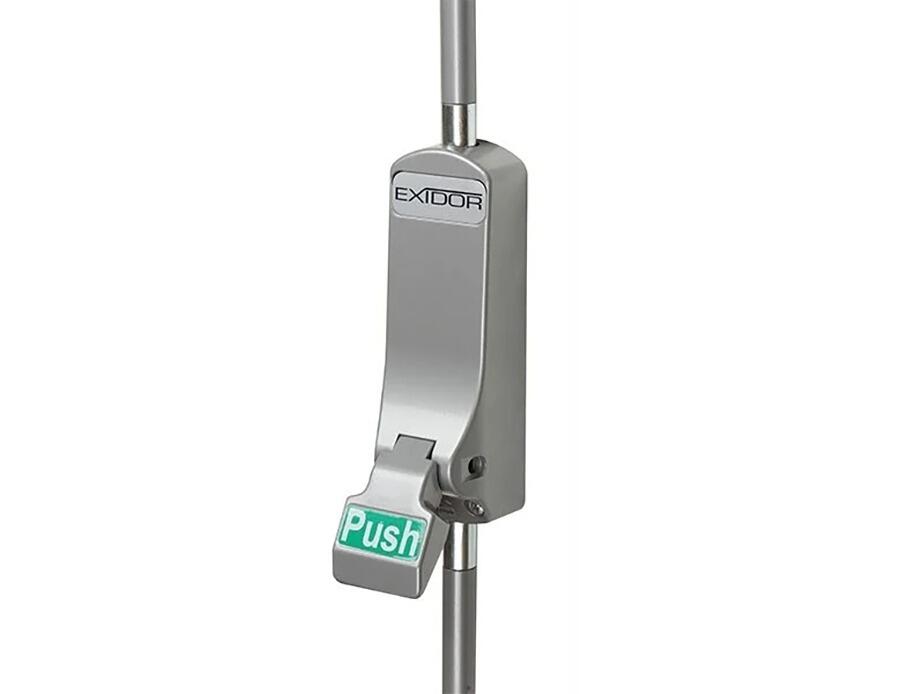

The Exidor 293 silver push pad vertical bolt is a premium emergency exit hardware solution for single doors, ensuring quick, reliable escape in critical situations. Suitable for use with FD30 /FD60 fire doors. Compliant with EN 179 standards, this sleek silver-finished panic bolt features two shoot bolts, an automatic top trip mechanism, and easy push-pad operation for effortless bolt retraction. Ideal for timber or steel doors up to 200kg and 2440mm high, it combines durability, security, and elegance for commercial and public buildings.

Exidor 293 Silver | Push Pad - Vertical Bolt (293)


Security Check


  • Additional Product Details

    The Exidor 293 is an elegant and highly functional panic bolt for single and double-door applications. Incorporated as standard is an automatic top tripper and an easy-clean floor socket. The main body is fitted with an antithrust device, which prevents the leverage of both the top and bottom shoot bolts from their sockets.

    • Non-handed (universal)
    • Fire rated for use on timber and steel doors*
    • Surface-mounted
    • Max door thickness <51mm
    • Max door height <2440mm
    • Max door weight <200 kilos


    * For metal door fixings & keeps, please order Exidor 293SD.SILVER

    For key-controlled external access, use the Exidor 322EC Silver | Outside Access Device  (compatible with all Exidor Exit Devices). Please check Certifire approval for fire rating limitations.

    Available as standard in silver, there is also a choice of RAL colours and plated finishes.

    The Exidor 200/300 Series of escape hardware consists of a vertical bolt, rim latch, and mortice night latch operator. Each product is operated by a push pad (EN179) or horizontal bar (EN1125), which, when pushed in a downward arc, withdraws the locking element, releasing the door for immediate egress.

    Exidor Fire Door Closer | Exidor Exit Devices


    Relcross Limited (trading as) Door Hardware Online | Hambleton Avenue | DEVIZES | Wiltshire | SN10 2RT | United Kingdom | T: ++ 44 (0) 1380 720 062 | F: ++ 44 (0) 1380 729 888 |  E: britonsales@doorhardware-online.co.uk

  • Certification

    EN 179: 2008

    UKCA | CE | Certifire | Fire Rated* | Warranty: 10 Years (Mechanical)

    Certificates, including DoPs, are downloadable here

    *Certifire approves the Exidor 200/300 series for use on timber and steel doors to EN 1634-1: 2000. The rating will depend on the certification of the fire door. It is essential to realise that the hardware is required for the first part of the test until the door is sealed into the frame. After this period, the fire door is then responsible for sealing off the area.

    Timber doors up to FD120 | Metal Doors up to FD120/FD240

  • Resources | Downloads

    Exidor 200/300 Series | Bolts & Latches Range - Catalogue

    Exidor 293 Silver | Push Pad - Vertical Bolt (293) - Installation
