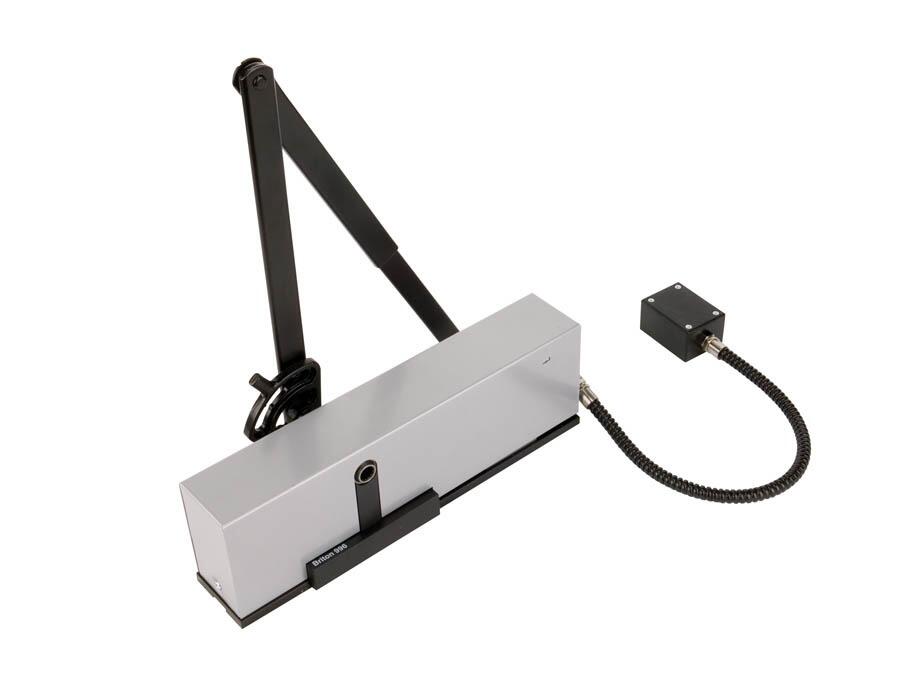

Briton 9964/01.SE | Electro HO/Free Swing Door Closer (996)

Electromagnetic Hold Open Closer 24Vdc, Fixed Power Size 4. Two Possible Applications Fig. 1 & Fig. 61.

• Satisfies the requirements of Approved Document M
• Suitable for doors up to 1110mm wide and 80kg (9964)
• Catch plate can be set to operate in hold-open or swing-free at the point of installation
• Adjustable closing speed & latch action
• Fitting template for quick and easy installation
• Designed for use on low voltage circuits 24Vdc linked to a fire alarm
• The electromagnet is controlled by the building fire alarm/detector and activates the catch plate to ensure the door closes automatically in the event of a fire or power failure.
• Optional rear entry cable allows units to be installed with concealed cable via a concealed loop to protect the closer against vandalism
• Supplied with flexible armoured power loop (330mm long as standard) to run power safely from the door frame to the closer
• 10 year guarantee (mechanical), 2 year guarantee (electrical)

Your compatible 24V power supply is available here: RGL 2402/4TRS | 24Vdc 2.0 Amp Power Supply (PSU)

The Briton 996 Series. Typically used on fire-rated doors where the hold-open or swing-free feature is required either in high-traffic areas for convenience or in situations where it would be difficult to satisfy the maximum opening force requirements of Part M of The Building Regulations.
